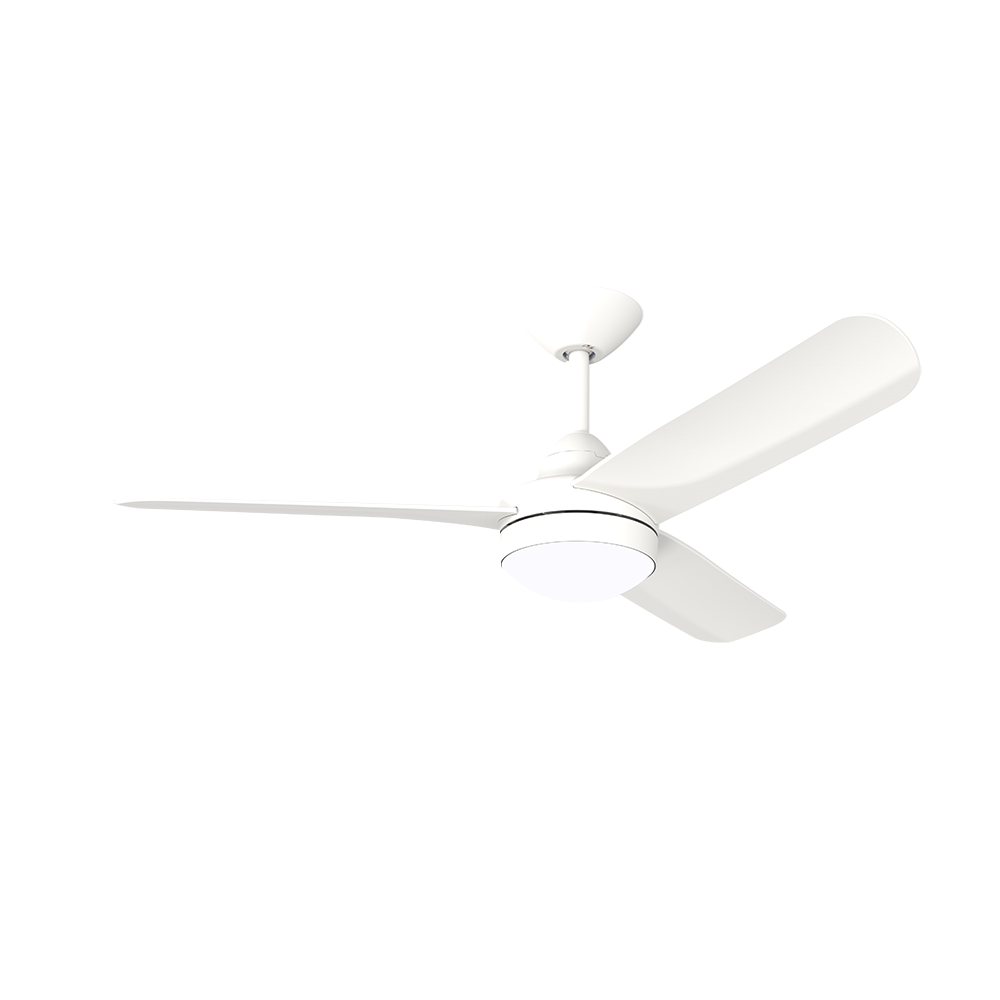

X-Over DC Ceiling Fan 48" 3 Blades Matt White With Light And Wall Controll - XOL302

Product Description

Product Features:

• Installation Locations: Indoor / outdoor and coastal locations (provided fan is fully undercover)
• Recommended Height: There must be at least 2.1m between the lowest point of the fan blades and the floor.
• Top of canopy cover to lowest point of the fan: Approximately 370mm
• Ceiling to lowest point of the blade: Approximately 270mm
• Top canopy diameter: 168mm
• Motor: 125mm x 13mm DC motor, made with high grade copper windings and silicone steel stator. Bearings are sealed to ensure quiet operation and long life.
• Top Canopy & Downrod Materials: Plastic / Steel
• Blades Size: 1220mm (48”)
• Blades Material: ABS Polymer, UV stabilised
• Blade Pitch: 10°
• Introduced into the HPI range in 2021
• Quick Connect Blade System
• 3 Speed Wall Control Fan
• Non Remote Adaptable
• Reversible airflow via manual summer / winter switch
• Standard Canopy Cover: Up to 28˚. An accessory 38 Degree Canopy Kit can be purchased separately for installation on raked ceiling up to 38˚.
• Wall Controller: 3 Speed Wall Control including RF MCU Unit
• LED Light: 18W CCT LED light selectable by manual switch
• LED Light Dimming: Dimmable using most Australian leading and trailing edge LED light dimmers
• Colour Temperature: 3000K, 4000K & 6000K
• Airflow CMH: 48” - 13,250 on High speed

Dimensions:

• Width: 1220 mm
• Height: 370 mm

Brand & Design:

• Brand: Hunter Pacific
• Collection: X-Over
• SKU: XOL302
• Material: ABS Polymer
• Colour: White

Warranty:

• 3 years standard “in home” warranty
• 3 years extended warranty on motor only (excluding labour)
• 2 years in-home warranty on all electric components (control modules, lighting and accessory wall control)

Technical Specifications

This fitting must be installed by a licensed electrician.
